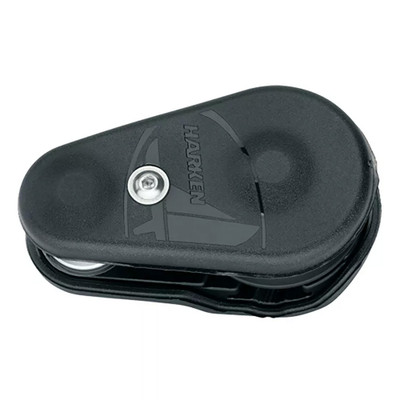

Harken 1 Ton Twing Block with Spring Release

The Harken 1 Ton Twing Block features a spring-loaded side-opening mechanism built for true one-handed rigging, even while wearing sailing gloves, making it fast to clip onto a loaded sheet mid-maneuver without fumbling with a shackle.

Black anodized aluminum sideplates are edged with robust bumpers to protect the block, topsides, and deck from impact, and an anti-capsize bar keeps the sheave aligned on the sheet under load. The ULC main bearing lets the sheave turn smoothly even under extreme loading, while sideload balls carry loads effectively even when the block isn't perfectly aligned in light air, and a thimble at the pivot base supports 1:1 or 2:1 up-down control setups.

Built for twing and tweaker control on code zero sheets, spinnaker sheet and guy control, or as a snatch block when combined with a soft shackle, this block is rated for a 1000kg (2205 lb) maximum working load and 2000kg (4409 lb) breaking load. Machined aluminum inner sideplates keep it high strength and low weight, with soft polyurethane outer bumpers protecting both block and deck. Browse more sailing hardware at CritPro.

Key Features: sheave diameter: 38.5mm (1-1/2 inch), max line diameter: 11mm (0.43 inch), max working load: 1000kg (2205 lbs), breaking load: 2000kg (4409 lbs), sideplate material: Black Anodized Aluminum, bearing: ULC Main Bearing, uses: Twing/Tweaker Control, Snatch Block, Spinnaker Sheet and Guy Control.

Frequently Asked Questions

What is the maximum working load? 1000kg (2205 lbs).

What size sheave does it use? 38.5mm (1-1/2 inch).

What is the maximum line diameter? 11mm (0.43 inch).
