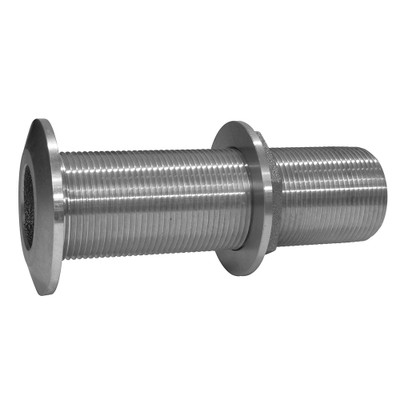

GROCO 1.5-Inch Stainless Extra-Long Thru-Hull Fitting
- UPC:
- 742985175181
- MPN:
- THXL-1500-WS
- Condition:
- New
- Availability:
- In Stock
- Shipping:
- $6.95 Flat Rate (Per Order)
Description
A 1-1/2-inch thru-hull may need additional threaded reach when the hull section includes a heavy backing block. GROCO's THXL-1500-WS is the extra-long stainless model for that nominal connection size, rather than a short standard fitting. Its straight body and supplied nut allow the installer to plan the inside valve arrangement without changing to a different pipe diameter.
The part is made from 316 stainless steel and uses the NPSM/NPT combination connection described for the THXL-WS range. GROCO gives the THXL-1500-WS an A drawing dimension of 5.45 inches and a C dimension of 2.89 inches. Although the A dimension matches the 1-1/4-inch version, the connection size and C measurement do not, so the two parts should not be treated as substitutes.
Before bedding the exterior flange, check the full mounted thickness and test the intended mating hardware. Leave enough access around the inside face to seat the retaining nut correctly and inspect the completed joint. This fitting is best selected from the boat's plumbing size and dimensional requirements, not simply because a longer shank looks convenient. Browse more marine plumbing fittings and strainer parts at CritPro.
Specifications
- Fitting Type:
- Thru-Hull Fitting
- Material:
- 316 Stainless Steel
- Product Type:
- Thru-Hull & Drain
- Size:
- 1.5 in
- Thread Type:
- NPSM/NPT Combination
- Bing Feed:
- Yes
- Google Feed:
- Yes
- Pinterest Feed:
- Yes
