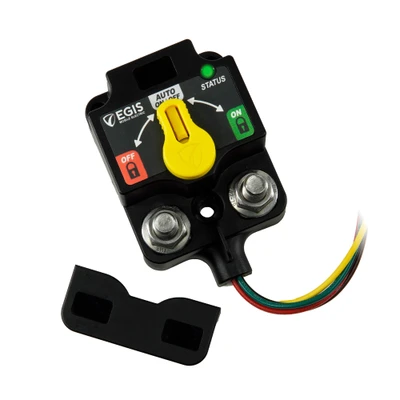

EGIS XD Flex 1 Single Relay-ACR Knob Wired Module

The EGIS XD Flex 1 Single Relay-ACR Knob Wired Module combines a front manual override knob with tinned wire leads. The knob can lock the relay ON or OFF for servicing. Through its single relay position, the module carries up to 500A continuous.

Dip switches choose the operating mode: relay or battery disconnect, automatic charging relay, or low-voltage disconnect. Remote ON/OFF/Auto inputs override the automatic logic when needed. Status LEDs, both on the module and remote, make troubleshooting easier.

Choose this wired version when you want the override knob but prefer hard-wired leads to a DTM plug. The XD Flex platform supports single- and multiple-engine installations with dual start and engine-isolation inputs where applicable. Browse more Battery Isolators & Charging Relays for other XD Flex modules.

Key Features

• Manual override knob
• Tinned wire leads
• Up to 500A continuous
• Dip-switch programmable
