EGIS XD Flex 2 Single VSR Wired Module

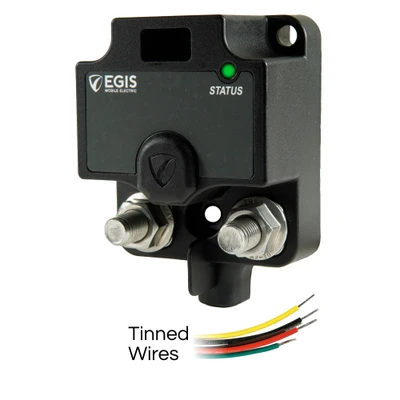

The EGIS XD Flex 2 Single VSR Wired Module is a compact 500A-capable voltage-sensing relay for high-current battery and load management. It can replace older remote switching arrangements while combining programmable voltage-based control, remote command inputs, and status indication in one module.

Dip switches allow the unit to function as a relay/battery disconnect, voltage-sensing relay, or low-voltage disconnect. This no-knob version is intended for remote and automatic control without a local manual override. Remote ON/OFF/Auto inputs can force the device closed, force it open, or allow automatic operation based on sensed voltage. Local and remote LEDs provide operating-state feedback, and a mechanical-only contactor option is available within the Flex 2 platform.

• Up to 500A continuous capability in a compact XD housing
• Selectable relay/disconnect, VSR, or low-voltage-disconnect operation
• Remote ON/OFF/Auto commands with automatic voltage sensing
• Local and remote LED status indication
• No manual knob for remote-control installations
