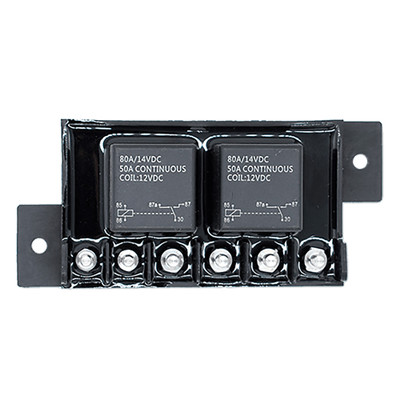

Bluewater Forward/Reverse DC Motor Control Module

The Bluewater forward/reverse motor control module automatically changes motor direction when it receives the appropriate pulse from an external control switch. It is designed for equipment that needs powered movement in two directions without asking the panel switch to carry the full motor-control function directly. When the operator returns the control to off, dynamic braking helps stop the motor rather than allowing it to coast. That operating behavior makes the module useful for controlled movement where repeatable stopping is important.

Applications include lifts, hatches, winches, tarp systems, snowplows, intake and exhaust fans, vehicle outriggers, and other compatible reversing loads. The low-profile body saves mounting space in electrical compartments where relays and cable routing already compete for room. Power studs are securely anchored in epoxy to reduce movement at the high-current connection points. Tin-plated brass studs and hardware provide corrosion resistance for installations exposed to moisture and changing temperatures.

• Automatically reverses compatible motor direction from a control pulse
• Dynamic braking helps stop the motor when control returns to off
• Low-profile housing conserves installation space
• Epoxy-anchored tin-plated brass studs

The module should be mounted where its high-current conductors can be supported and protected from accidental contact. The external control switch, motor, cable size, and circuit protection all need to match the requirements of the completed reversing system. For related relays, distribution modules, and high-current control hardware, browse Relays, Combiners & Disconnects.
