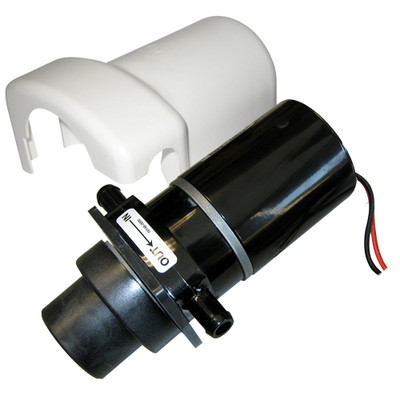

Jabsco 24V Motor Pump Assembly for 37010 Toilets

The Jabsco 24V Motor Pump Assembly for 37010 Toilets (part 37041-0011) replaces the motor and pump section on 24V 37010 series electric toilets. Swapping the complete assembly is often faster than rebuilding the motor and pumps separately. It is a good option when the toilet has many hours on it and several parts are worn. It arrives as one unit, ready to bolt in place.

The 37010 uses a single motor that drives both the raw water rinse pump and the macerator. This assembly restores both functions at once. Confirm the toilet runs on 24V before ordering, since 12V and 24V assemblies are not interchangeable. If the motor runs but the bowl does not fill or empty, worn pump parts are a likely cause.

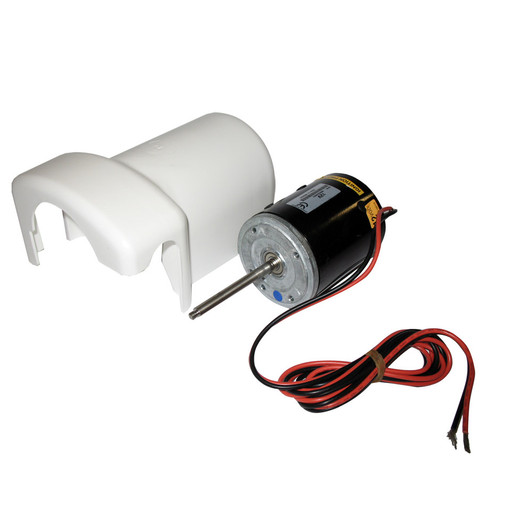

Disconnect power and close both seacocks before beginning work. Have rags and a bucket ready, since some water will remain in the hoses. After installation, run several flushes and check every joint for drips. Check the wire terminals for corrosion and clean them before connecting the new motor. Keep the old assembly for spare parts if the motor still runs. The 12V 37010 motor and more head parts are in our toilet parts and accessories.

• 24V motor pump assembly for 37010
• Part 37041-0011
• Restores rinse and macerator together
• Faster than a piece-by-piece rebuild
